Zebra Printers

1.Plug in the printer

2.Download and extract drivers from https://www.zebra.com/us/en/support-downloads.html.

3.Run through the setup wizard (Zebra EPL section) until the Config. Assistant Wizard.

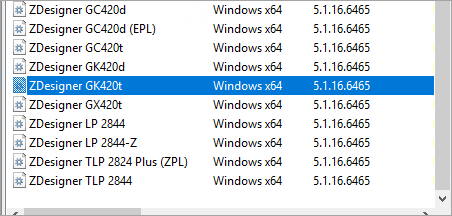

Jim2 does not support the Seagull printer drivers, however the ZDesigner drivers are supported:     The Seagull drivers are not supported.

4.Label Setup screen

▪Select Customise, and set up a new custom label of the correct size (eg. 30x40)

▪Orientation = portrait

▪Unit = Centimetres

5.Dispense Mode = None

6.Media Type = Thermal Transfer

7.Use Label Gaps

8.Finish

If the vertical alignment is wrong:

1.Turn off the printer.

2.Ensure labels are installed correctly.

3.Hold Green button to turn on printer.

4.Once the LED has flashed once, let go of the button. It will print a number of labels.

5.Hit the Green button again to end dump mode.

If there's an issue, it is usually due to a problem driver, paper alignment or the label size being set incorrectly.
