Trackable Reports

 Back Top Prev Next Print

Trackable reports allow a report to be tracked when printed, emailed or exported (logged in History) from a security point of view, and records the number of times this has happened, providing printed X times functionality on reports, etc.



By default, all reports are not tracked, and must be flagged as Trackable to enable this functionality.



info

It is recommended to only flag key reports as trackable, based on either security requirements, or if printed X times  functionality is required (eg. picking slips).



Whenever a trackable report is previewed/printed/emailed/exported, a history log entry is made that includes the following information:

▪date and time report invoked

▪user who invoked the report

▪related Jim2 object (job, quote etc.)

▪related Jim2 object number (job no, quote no)

▪report event (print, preview emailed, etc.)

▪report path and name.



hmtoggle_arrow1Mark a report trackable
warning1

System reports should never be modified – make a copy of the existing system report and make changes to that copy. This ensures that reports don't become broken during upgrades. A warning will pop to screen that system reports cannot be edited.



reportwarning

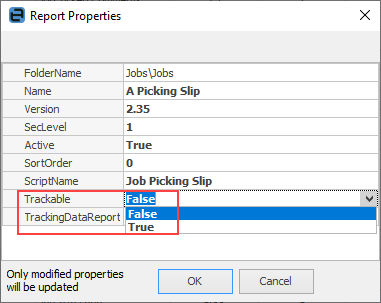

To mark a report trackable, open Report Designer via Tools > Report Designer. Choose the report and select Properties on the ribbon. Change the Trackable report property to True.



maketrackable



hmtoggle_arrow1View a trackable report’s history

If a report is trackable and related to a Jim2 object (job, quote etc.), the report log is displayed within the history of that object. For example, if a picking slip was printed for Job#16 (image below), the log of that is displayed when viewing the history of Job#16.



trackablehistory

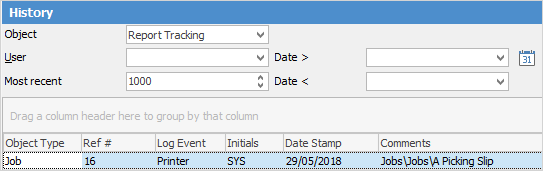

For reports that are not related to an object, or to see any trackable reports, select Report Tracking as the object in the Tools > History selection criteria.



reporttracking



hmtoggle_arrow1Access trackable report variables

One of the benefits of marking a report trackable is the ability to display how many times it has been printed on the actual report.



Several variables are available within Report Designer, via the JimSystem report pipeline, to enable this functionality.



Report DataPipeline

Report Variable

Type

Description

JimSystem

ReportTrackable

String

Ticked if report is trackable.

JimSystem

ReportTrackable_ExportCount

Integer

Number of times exported.

JimSystem

ReportTrackable_PreviewCount

Integer

Number of times previewed.

JimSystem

ReportTrackable_PrintCount

Integer

Numbers of times printed.



Typically, a Label component would be added to a report, and add an OnGetText event to that label with RAP code as follows:



procedure LabelTrackableOnGetText(var Text: String)

begin

Text := ‘’

if (JimSystem(‘ReportTrackable’) = ‘T’) and (JimSystem(‘ReportDestination’) = ‘Printer’) then

begin

if JimSystem(‘ReportTrackable_PrintCount’) = 0 then

Text := ‘First time printed’

else

Text := ‘Report print count = ‘ + IntToStr(JimSystem(‘ReportTrackable_PrintCount’))

end



The following properties are available within the Scripting Engine via the ReportLogger object



ReportLogger.IsLogging

ReportLogger.PrintCount

ReportLogger.PreviewCount

Reportlogger.ExportCount



Sample Scripting Engine code:



if (ReportLogger.IsLogging) and (ReportLogger.PrintCount = 0) then

begin

// first time printed

...

end



Further information

Report Designer Menus

Report Designer Toolbar

Signable Reports

Set up Back of Page Text on Invoice



For more detailed information regarding Report Designer please refer to www.digital-metaphors.com (copy and paste into a web browser).
