The next step is to set up the Jes Instance on Jim2 Server. This is done so that Jef and Jes can have a communication line. Jef needs to communicate with Jes to obtain Jim2 data such as job lists, meter reads and service requests. Jes needs to communicate with Jef in order to publish user accounts to the website.
Publish Module
Looks after the publication of information from Jim2 to Jim2 eBusiness Framework (Jef).
TCP Module
Provides the Jef connectivity to Jes. This module is required by Jef when configured as online, and when obtaining Jim2 functionality such as job lists, meter reads and service requests.
1.Open the Jim2CM from C:\Program Files\Happen Business\Jim2Server\Jim2 Configuration Manager.
2.If you have not created a new Jes Instance:
a)Click File > New Jes Instance.
b)Enter the database name.
c)Leave the default port of 5740.
3.Right click the Jes Instance and select Configure.

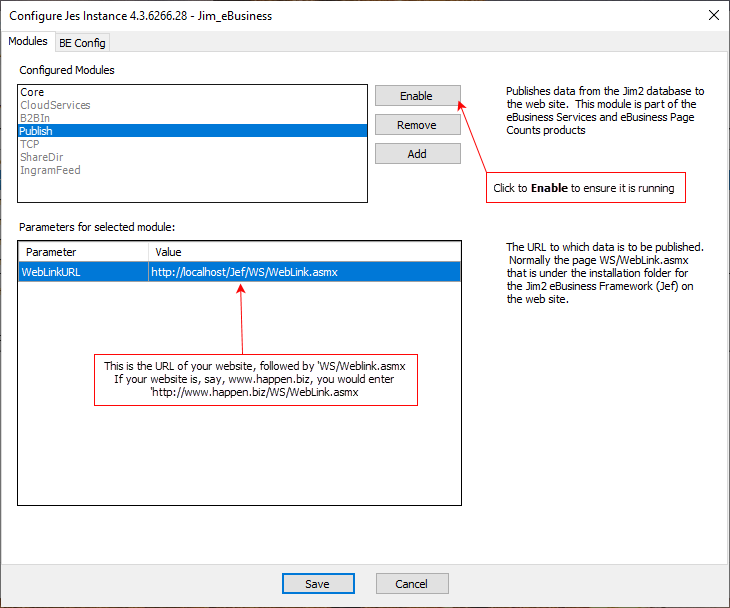

4.Set up the Publish module. The Publish module looks after the publication of information from Jim2 to Jim2 eBusiness Framework (Jef).

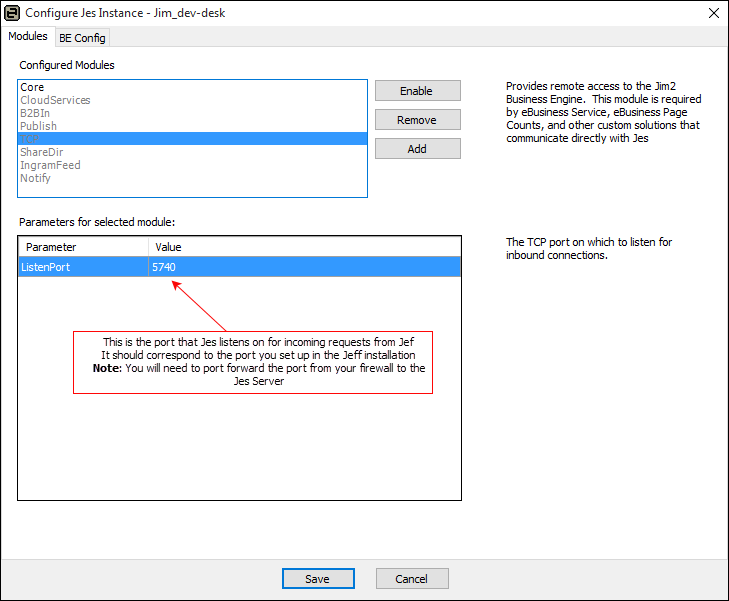

Set up the TCP Module
To start the Jes Instance, select the Jes Instance from the grid and click Start
