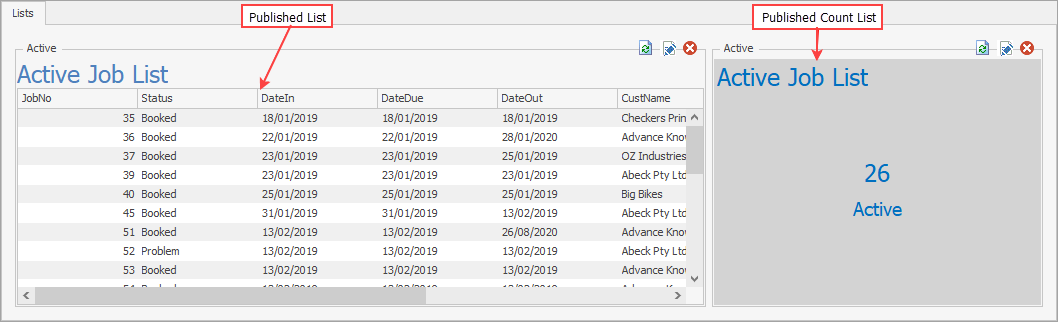

Published List Widget

This widget will display a list of all objects within the published list specified. By selecting the Configure icon further selections can be made.

Area	Option	Description
Widget Settings	Caption	This is the caption that will be displayed at the top of the widget. This is a free type field.
Widget Settings	Refresh	The widget's refresh interval in minutes. It is suggested not to set this too low (eg. 15 minutes or higher).
Chart Settings	Desc. Font Size	The font size for the description entered in the Description field in the lower part of the popup. This then appears at the top of the widget.
	Desc Colour	The colour for the Description font.
	Grid Font Size	The font size for the text within the grid.
Filters	Source	Choose from job, quote, or project.
	List	Select the published list to view.
	Description	You can enter a description here. As in the above example: Active Job List.
	Columns	From the drop down, you can select which columns you wish to appear:

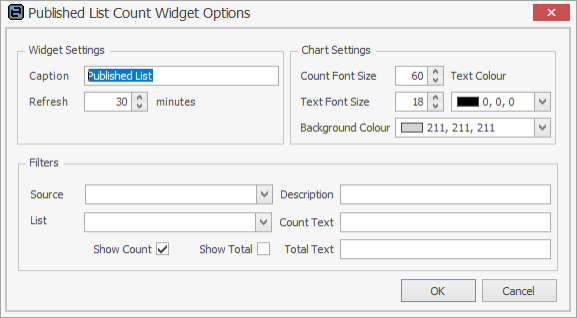

This widget will show the current number of objects within the chosen list. By selecting the Configure icon further selections can be made.

Area	Option	Description
Widget Settings	Caption	This is the caption that will be displayed at the top of the widget. This is a free type field.
Widget Settings	Refresh	The widget's refresh interval in minutes. It is suggested not to set this too low (eg. 15 minutes or higher).
Chart Settings	Count Font Size	The font size of the actual count. In the image at the top of screen, it is the number 26.
	Text Font Size	The font size for the text appearing beneath the count number.
	Background Colour	The colour of the field background.
Filters	Source	Choose from job, quote, project, stock or email list.
	List	Select the published list to view.
	Description	You can enter a description here. As in the above example: Active Job List.
	Count Text	Enter the wording you wish to appear beneath the number.

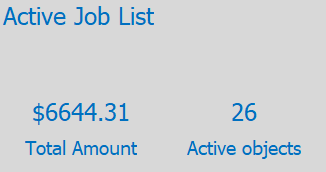

	Show Count/Total	This will show both the count and the total amount.
	Total Text	Enter the wording you wish to appear beneath the total amount,.
