Create a Monitor

Scroll Prev Top Next More

This explains how to create a monitor and download a DCA Monitor for installation at a customer site.

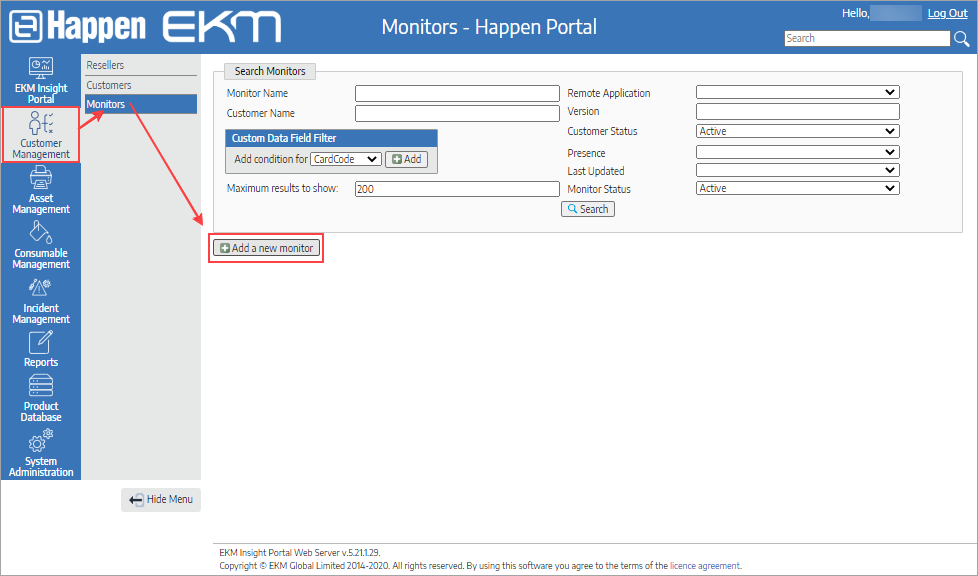

Select Customer Management, then Monitors. Click Add a new monitor.



create monitor

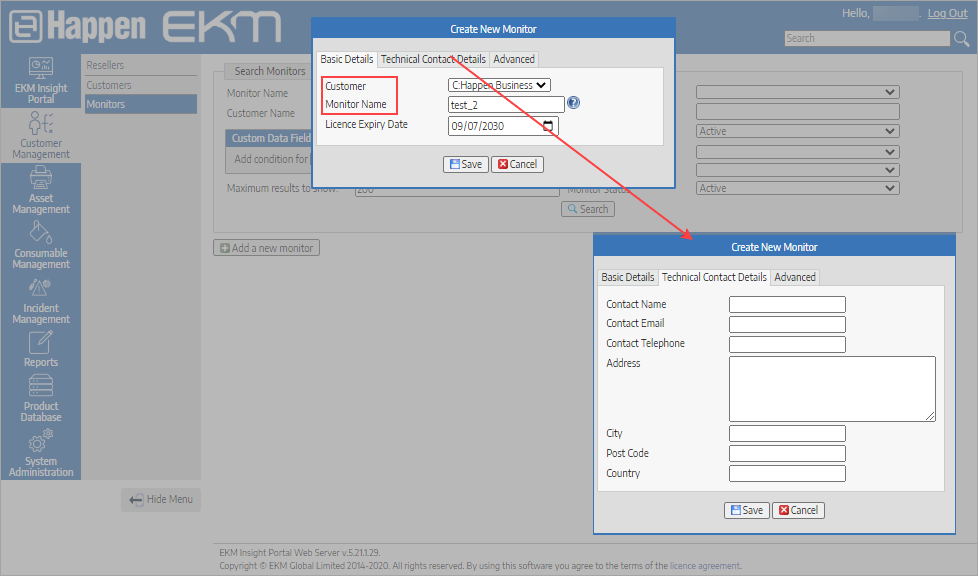

Select a customer from the dropdown, enter the Monitor Name. Enter other details as required on the other tabs. Click Save.



enter monitor details



Provider code and licence key

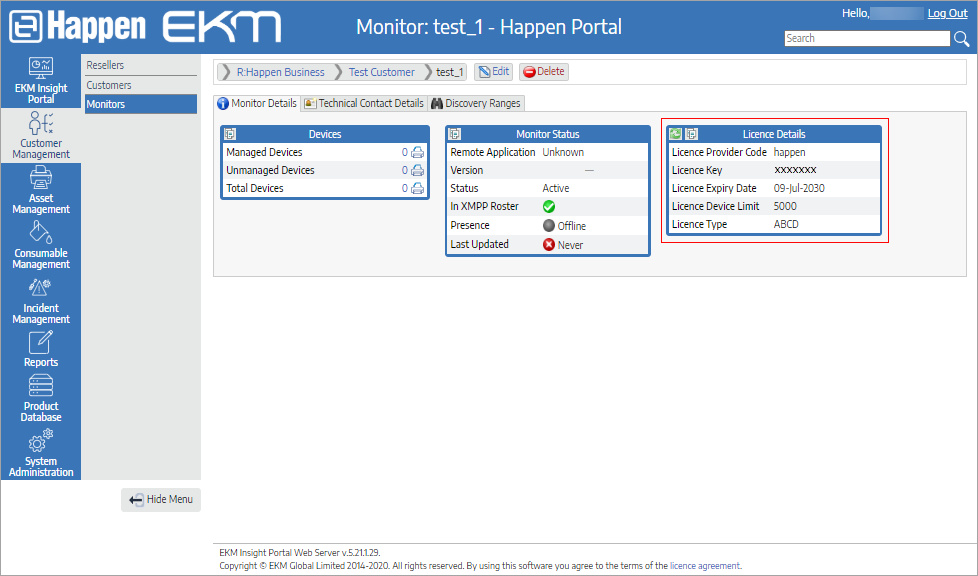

The provider code and licence key are needed for the monitor installation.



provider code



This table can be copied to the clipboard by clicking the copy to clipboard icon in the top left of the Licence Details window.



Create a new key for a monitor

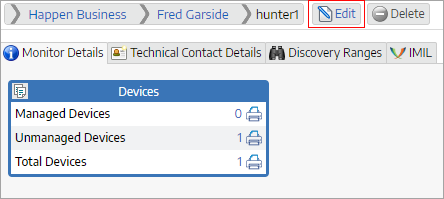

From the monitor, select the Edit button.



new monitor licence

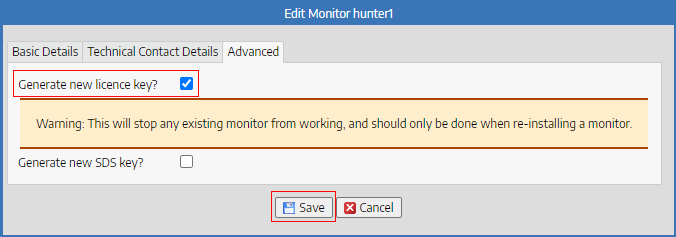

On the Advanced tab of the new window, tick Generate new licence key, then click Save.



new monitor licence1
