Debtors/Creditors Widget

Scroll Prev Top Next More

The Debtors/Creditors widget allows you to view the current state of either your debtors or creditors as a graph (bar layout). Debtors/Creditors are grouped by Current, 30, 60 and 90+ days. The sum of your debtors/creditors is displayed along with the number and total of overdue invoices, follow-ups, unallocated credits and accounts on hold or over limit.



The amounts outstanding (displayed as bars in the graph) can be drilled down on, eg. you can select the 90 Days bar, and a grid will appear listing the overdue invoices. If desired, you can then right click to view that debtor or creditor within Jim2.

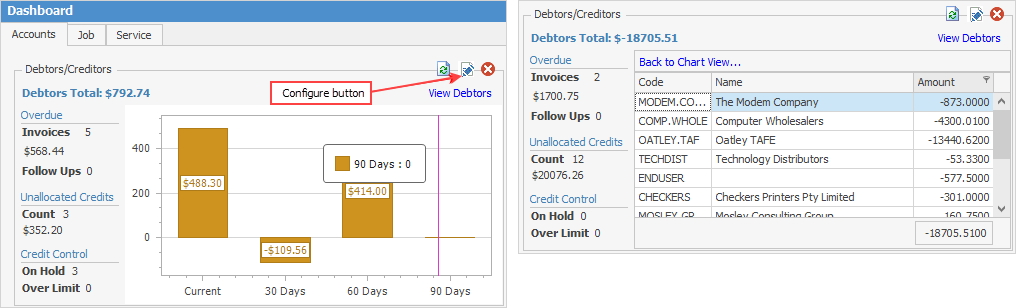

debtors widget

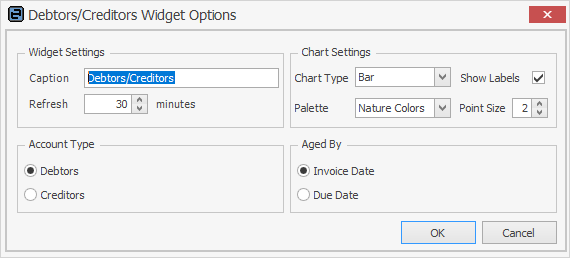

debtors widget options



Group

Option

Description

Widget Settings

Caption

This is the caption that will be displayed at the top of the widget. Example: Debtors.

Refresh

The widget's refresh interval in minutes. It is suggested not to set this too low, eg. set to 15 minutes or higher.

Chart Settings

Chart Type

Only the Bar chart type is available in this widget.

Show Labels

Show description and value above each point of the chart. If not ticked, the label will be displayed as a hint when your mouse is over a graph point.

Palette

Select the colour palette that will be used in the graph.

Point Size

The size of graph's points. Default = 2. Try 8 or 10 on smaller graphs.



2 points:

2 points

10 points:

10 points



Bar type charts do not have graph points.

Account Type

Debtors

Displays debtors information.

Creditors

Displays creditors information.

Aged By

Invoice Date

Aged by invoice date.

Due Date

Aged by due date.
