This area will take you through the consumable management configuration setup.

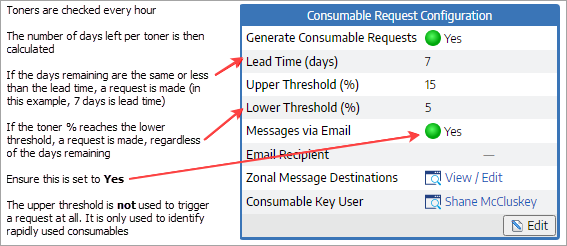

To send consumable emails, the following needs to be configured:
▪Email formats created (recommend identical formats) in both sections
▪Messages via email ticked in parameters edit section
▪Email destination entered (can have multiple destinations)
▪Lead time in days specified (default is 7 days)
▪Lower threshold trigger specified (default is 5%)
▪You do not need to alter the upper threshold from 15%.
In the above example, a toner will be requested when it has 7 days remaining or it reaches 5% left.

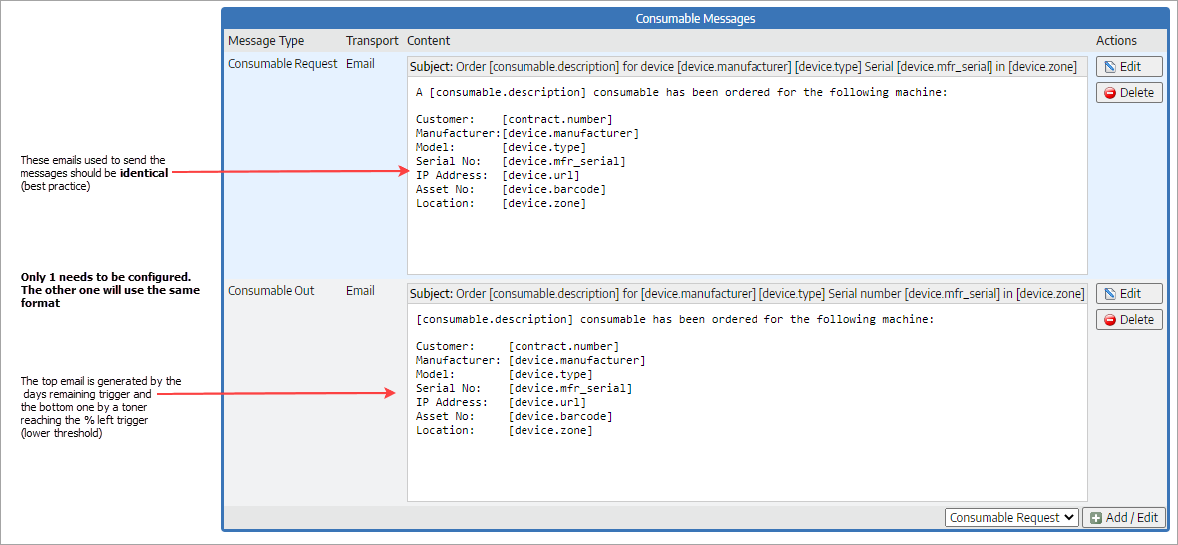

This email should be identical for both emails within the consumable system:
Subject |
Order [consumable.description] for [device.manufacturer] [device.type] - Serial No. [device.mfr_serial] in Zone [device.zone] |
||||||||||
Body |
A [consumable description] consumable has been ordered for the following machine
Details of consumable
Delivery location (if configured)
Delivery Address [dl.address_line_1] [dl.address_line_2] [dl.address_line_3] [dl.city] [dl.postcode] [dl.county] |
Happen EKM Insight Examples
Consumable |
Level |
Days Remaining |
Lead Time (Days) |
Lower Threshold |
Upper Threshold |
Action |
Black Toner |
20% |
10 |
7 |
5% |
15% |
Nothing |
Cyan Toner |
20% |
10 |
10 |
5% |
15% |
Order – Rapid Use (Trigger is days remaining and level is above upper threshold) |
Yellow Toner |
15% |
7 |
7 |
5% |
15% |
Order – Low (Trigger is days remaining) |
Magenta Toner |
10% |
7 |
7 |
5% |
15% |
Order – Low (Trigger is days remaining) |
Magenta Toner |
4% |
7 |
7 |
5% |
15% |
Order – Exhausted (Trigger is lower % threshold) |
Magenta Toner |
4% |
6 |
7 |
5% |
15% |
Order – Exhausted (Lower threshold overrides lead time) |
Fuser |
5% |
80 |
7 |
5% |
15% |
Order – Exhausted (Recommend put in Query) |
Further information
