Setting up a Windows Firewall for access to SQL Server and Jim2 Server

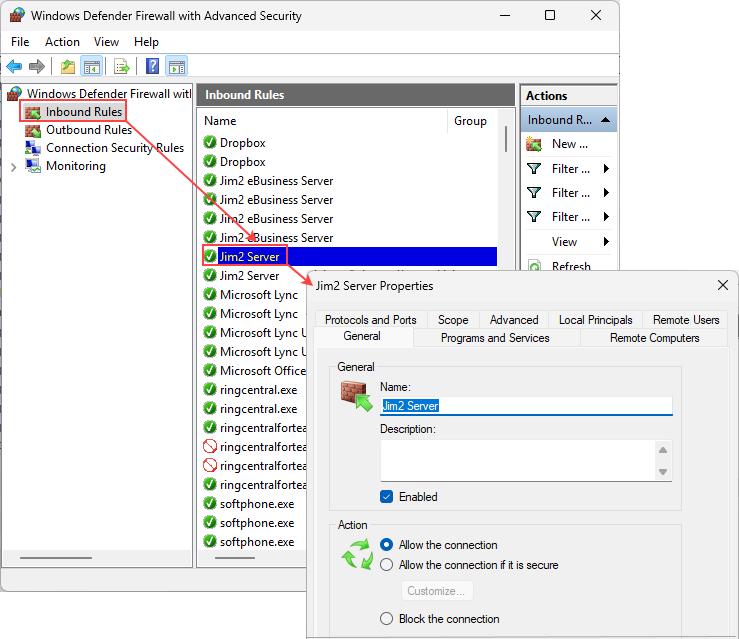

You need to allow access for SQL Server, SQL Browser, Jim2 Server and Jim2 eBusiness Server. To do this, you need to go to Windows Firewall, then select Advanced settings. Choose Inbound Rules, then Jim2 Server. Right click and select Properties.



firewall5



One rule is required for each of these applications :

SQL Server: Sqlservr.exe (usually found in: C:\Program Files\Microsoft SQL Server\MSSQL<version>.<instance_name>\MSSQL\Bin\ )

SQL Browser: sqlbrowser.exe (usually found in:  C:\Program Files\Microsoft SQL Server\<version>\Shared\ )

Jim2 Server Service: jim2server.exe  (Usually found in: C:\Program Files\Happen Business\Jim2\ )

Jim2 eBusiness Server: jes.exe (Usually found in: C:\Program Files\Happen Business\Jes\Bin\ )

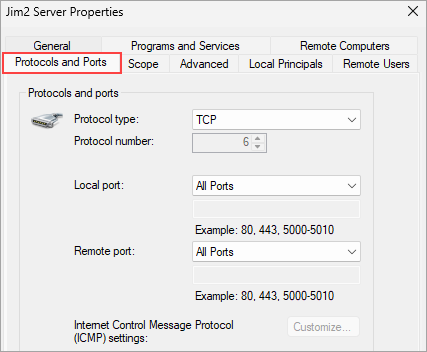

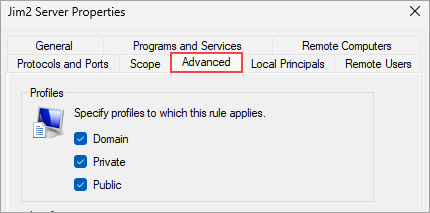

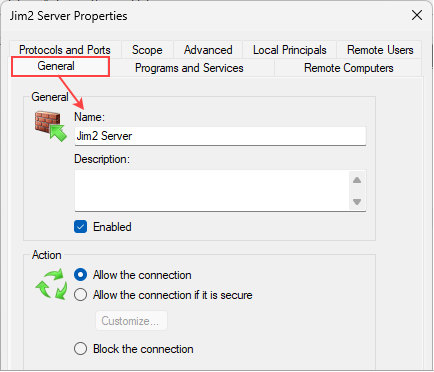

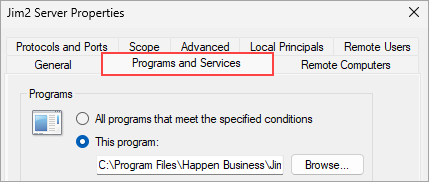

The rules only differ when it comes to the Name on the General tab and Application selected on the Programs and Services tab.



firewall1



firewall2



firewall3



firewall4



Further information:

Install Jim2 on Your Server
