Office 365 best practice enforces multi-factor authentication.
|
Note: Jim2 supports shared mailboxes with Office 365. |
The following explains the configuration requirements so Jim2 can retrieve Office 365 email using the Microsoft Graph API, and how to configure within Jim2 (both Jim2Cloud and Jim2 on premises).
|
Note: If you wish to use Microsoft Products (such as Word, Excel, etc.) via Jim2Cloud, it is recommended to obtain an E3 licence or above. This licence is not required for setting up Office3 365 email, however. |

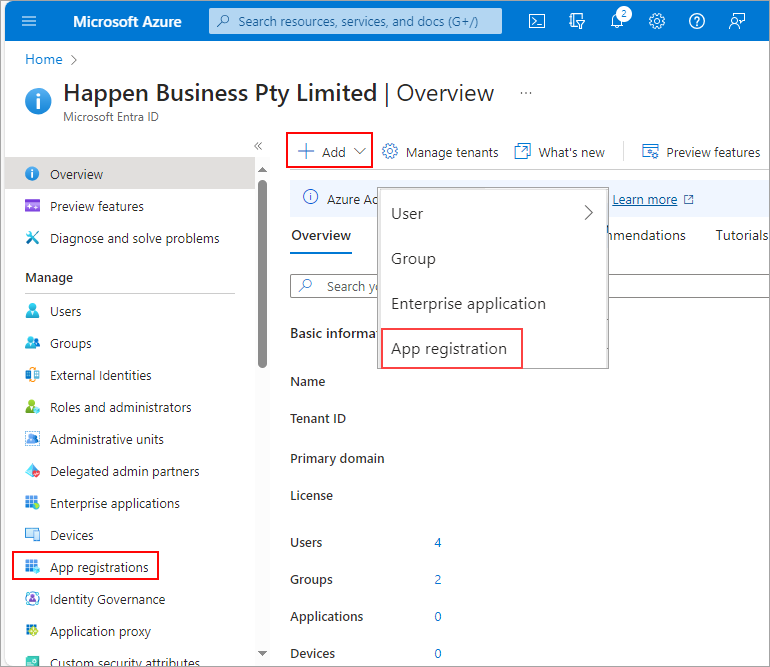

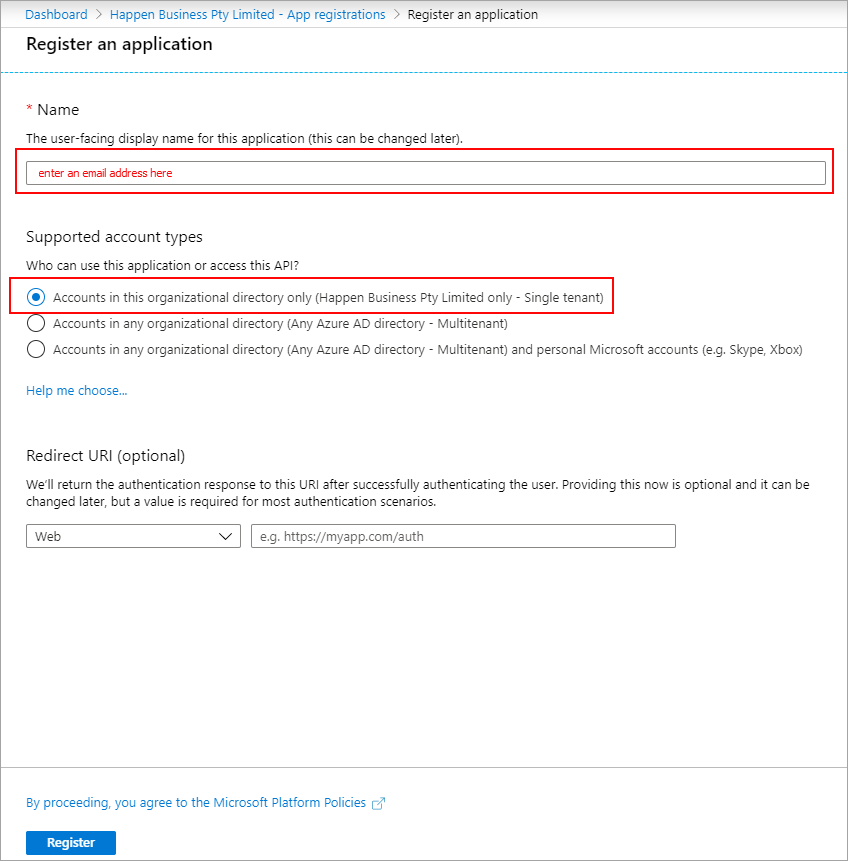

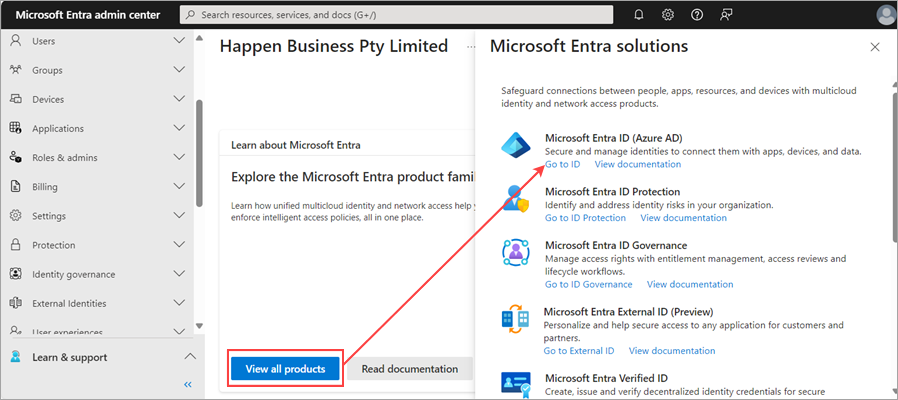

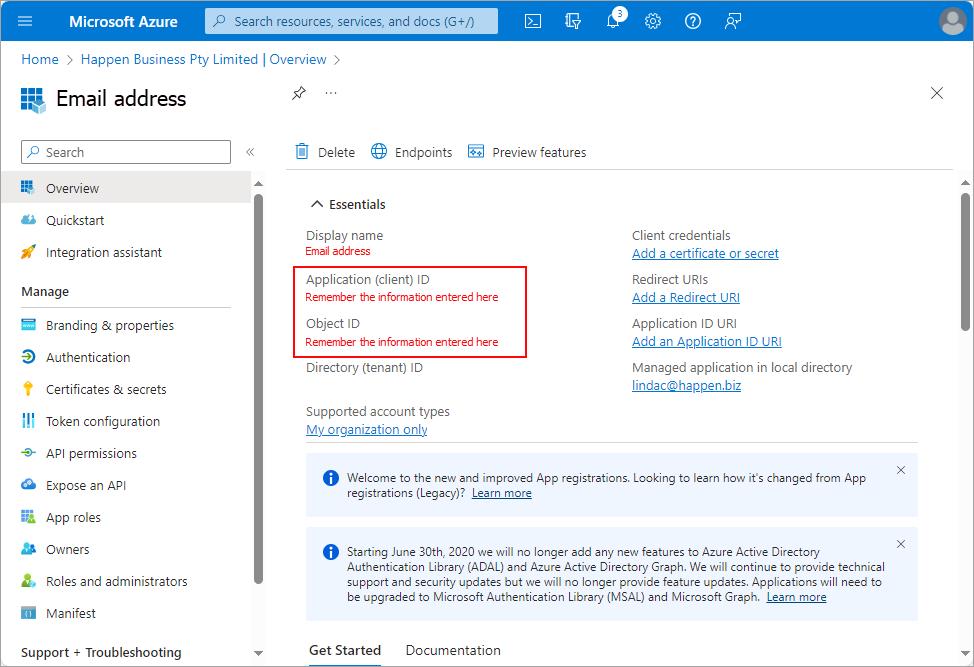

1.Using an account that is at least a Cloud Application Administrator, sign in to the Microsoft Entra Admin Centre.  or via the Azure portal:  2.Select Microsoft Entra ID. 3.Select Add, then App registration.  4.Enter a name for the application. It is suggested to name it Jim2 Email. Select Accounts in this organisation directory only (<name> only – single tenant).

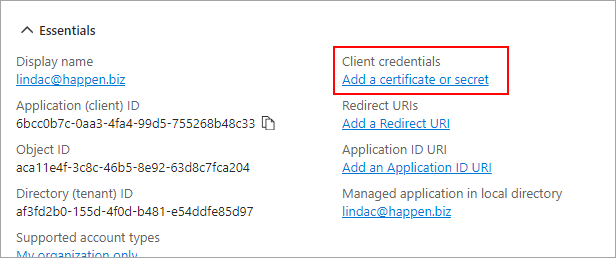

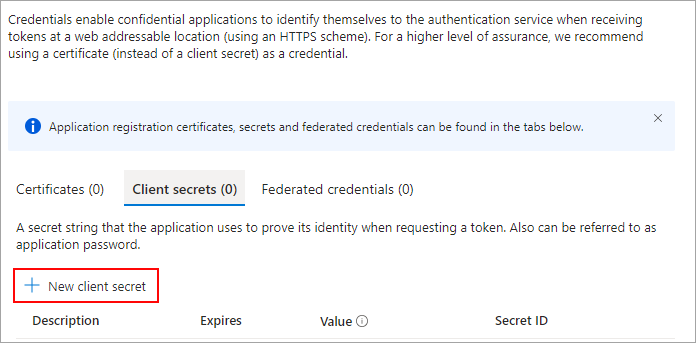

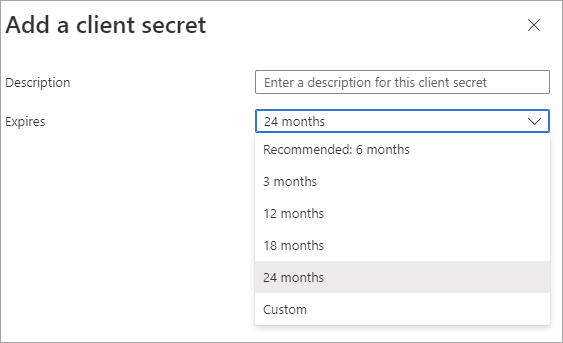

5.Create a secret for the application. Select Add a Certificates or secret, then New client secret. It is suggested to choose 24 months. If the secret is set to expire, a new secret needs to be created and then updated in Jim2 before the secret expires.

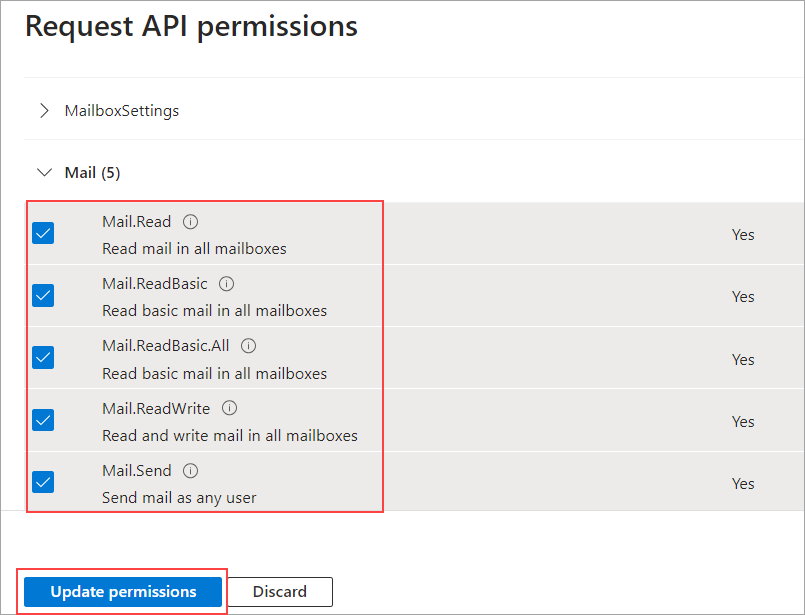

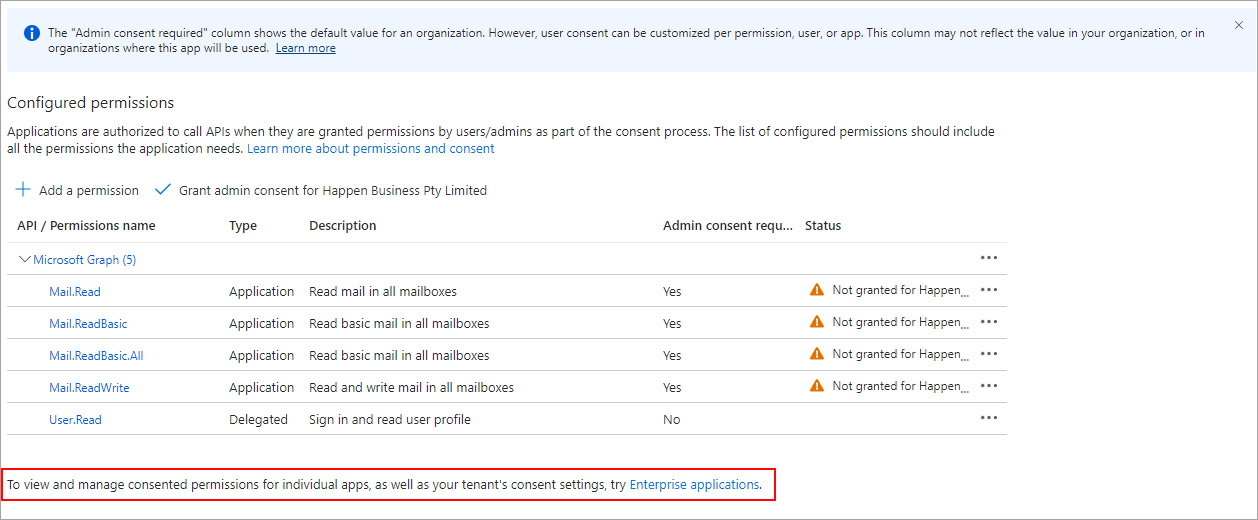

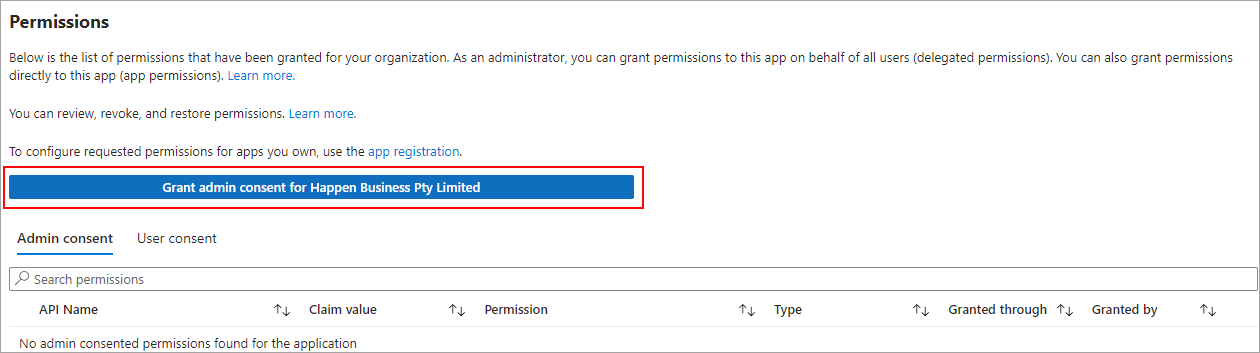

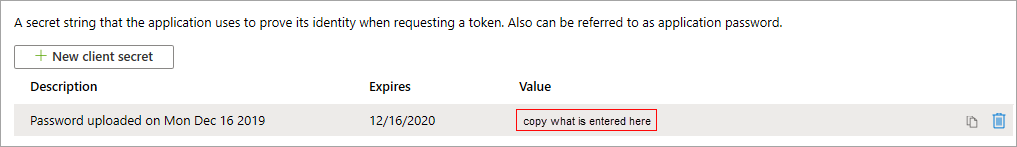

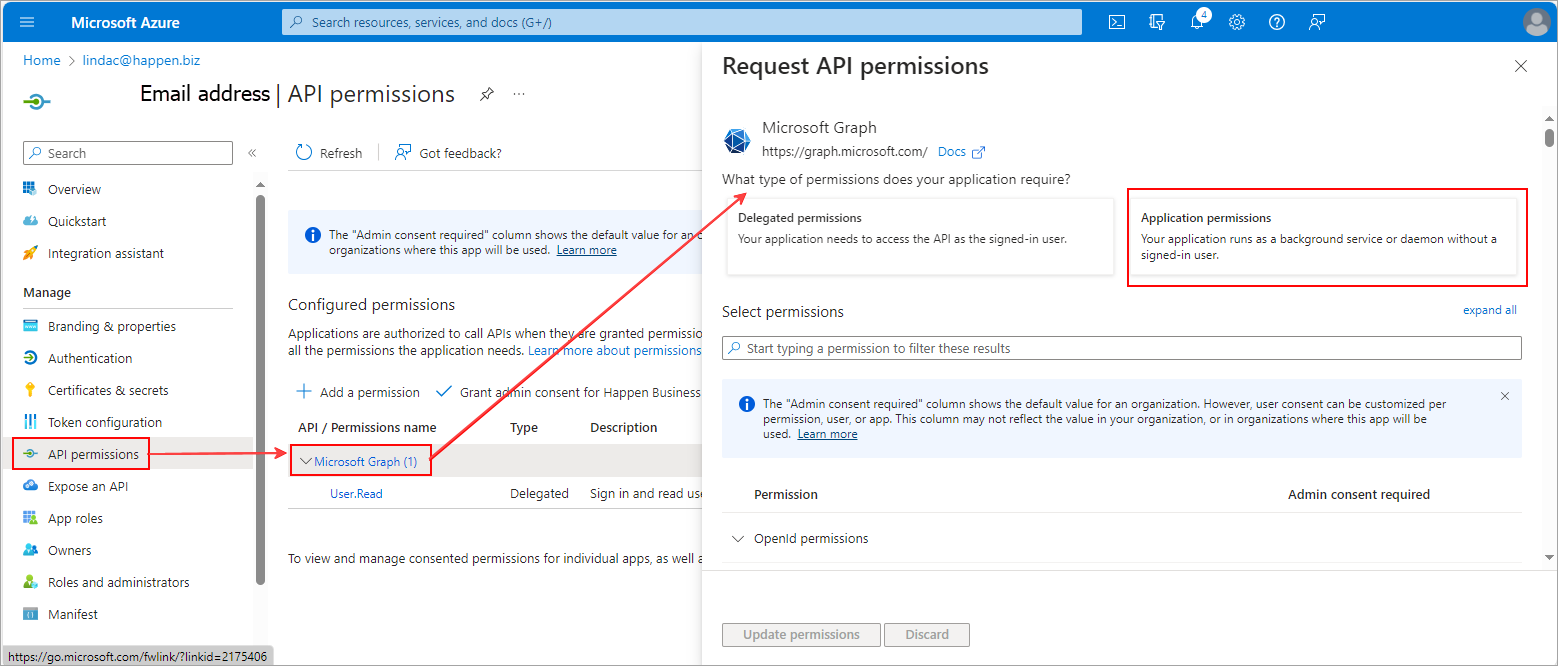

6.Copy this secret and keep it for entry into Jim2.  7.Go to API Permissions, click Add a permission, then select Microsoft Graph.  8.Select Application permissions. Scroll down the list for Mail and tick the 5 boxes as in the below image.  9.Click Update permissions.  10.Click Enterprise applications at the foot. Grant admin consent for, then follow the prompts.  |
On the ribbon, go to Tools > Setups > Email Accounts and click Add at the bottom of the screen:
Name and Email Address The Name field can be up to 254 characters in length. If it is not necessary to have an email address available for staff to select when sending emails, leave the email address field blank. When left blank, specify the mailbox where emails will be retrieved, such as sales@democompany.com. If emails need to go out as support@democompany.com and the email server forwards them to the same mailbox (support@democompany.com), set both the email address and mailbox to support@democompany.com. If an email address is required, the maximum characters allowed are 500.

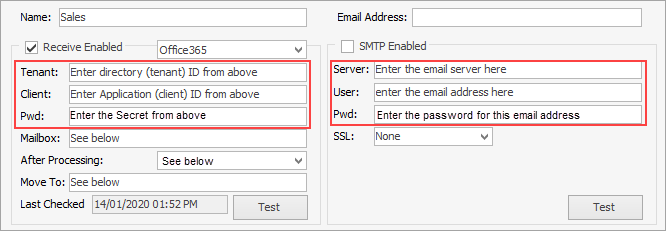

Received Enabled must be ticked. SMTP details are not to be entered here. ▪Tenant – Enter the Directory (tenant) ID from above. ▪Client – Enter the Application (client) ID from above. ▪Pwd – Enter the Secret from step 6 above. ▪Mailbox – Enter the email address where the emails are to be retrieved from. ▪After Processing – Choose an action to take:  –Move To processed folder – After the email is downloaded it is moved to the nominated folder in Office 365. –Delete – After the email is downloaded, it is deleted from the mailbox. –Do nothing – Email is left in mailbox (the last checked date is used to determine which emails to download).
▪Move To – it is recommended to create a folder such as DownloadedtoJim and have emails moved here. ▪Last Checked – This is the last date and time Jim2 checked for emails (as long as None is not selected above). ▪Server – Enter the email server here ▪User – Enter the email address here ▪Pwd – enter the password for the email address. ▪Select SSL.
Once set up, click Test to ensure everything is correct.
To avoid interruption to incoming email reception: ▪A new Client Secret will need to be created before the expiry 24 months (2 years). ▪Each mailbox in Jim2 must be updated with the new Client Secret (password).
Limiting access to specific Exchange online mailboxes Administrators who want to limit access to specific mailboxes can create an Application Access Policy for the Jim2 App Registration.
Please refer to the Microsoft documentation: Limiting application permissions to specific Exchange Online mailboxes – Microsoft Graph | Microsoft Docs: https://docs.microsoft.com/en-us/graph/auth-limit-mailbox-access |
