The Report Designer menu allows access to the following functions, via the respective headings:
File Menu |
Function |
Purpose |
|---|---|---|
 |
Close |
Close Report Designer. |
Page Setup/Print |
Set printer, paper size, source, layout and margins/print the selected report. |
|

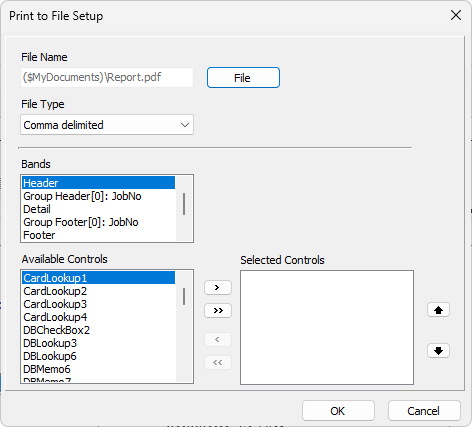

Print to File Setup |
Enter file name, file type, header, detail and footer band requirements. |
If scripts (and their associated forms), reports (just the layout) and/or the complete dataset (the script, forms and report) need to be updated for any reason, you can import them from an external source, and when updated export them. The import and export functions are available above File in the ribbon.
View Menu |
Function |
Purpose |
|---|---|---|
 |
Toolbars/Rulers |
Select to add more components to the view of the toolbar (the icons at the top of the screen)/show or hide rulers. |
Design Guides Grid Options Show Data |
Show/hide guides. Show/hide grid and set grid size. Show data in body. |
|
Themes |
Change the theme (visual appearance) of Report Designer. |

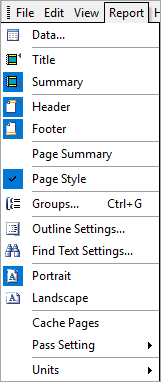

Report Menu |
Function |
Purpose |
|---|---|---|
 |
Data |
Select the data pipeline required. |
Title Summary |
Show or hide. Show or hide. |
|
Header Footer |
Show or hide. Show or hide. |
|
Page Style |
Show complete. |
|
Groups |
Set parameters such as start new page, reset page number, start on odd page, etc. |
|
Outline Settings Find Text Settings |
Create nodes for components. Find text within document. |
|
Portrait Landscape |
Set page rotation. |
|
Cache Pages Pass Setting |
On/off. 1 or 2 Pass. |
|
Units |
Set unit measurement, ie. mm, cm, etc. |
Further information:
Add a Signable Report for Jim2 Mobile |
|
For more detailed information regarding Report Designer please refer to www.digital-metaphors.com (copy and paste into a web browser).
