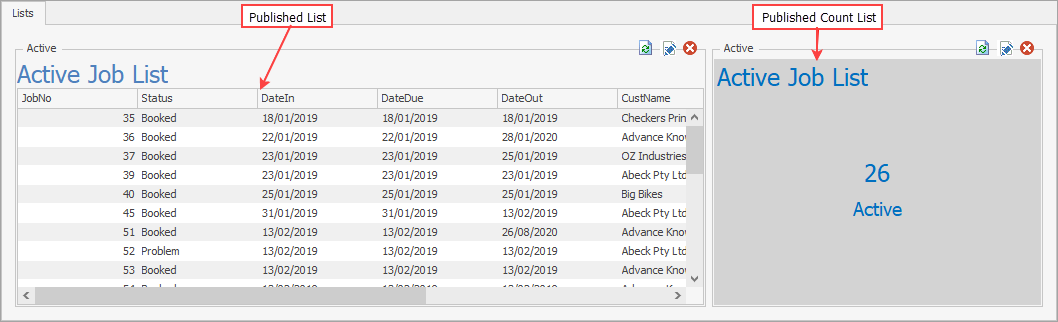

There are two Published List widgets:
▪Published List
▪Published List Count

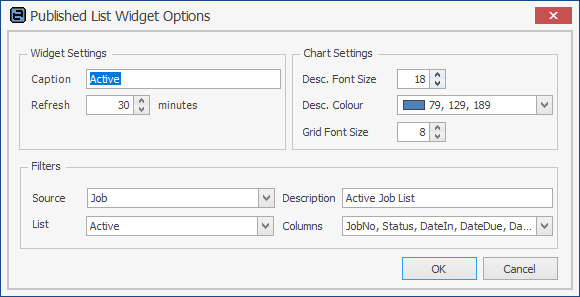

Published List Widget
This widget will display a list of all objects within the published list specified. By selecting the Configure icon
further selections can be made.
Area |
Option |
Description |
|---|---|---|
Widget Settings |
Caption |
This is the caption that will be displayed at the top of the widget. This is a free type field. |
Refresh |
The widget's refresh interval in minutes. It is suggested not to set this too low (eg. 15 minutes or higher). |
|
Chart Settings |
Desc. Font Size |
The font size for the description entered in the Description field in the lower part of the popup. This then appears at the top of the widget. |
Desc Colour |
The colour for the Description font. |
|
Grid Font Size |
The font size for the text within the grid. |
|
Filters |
Source |
Choose from job, quote, or project. |
List |
Select the published list to view. |
|
Description |
You can enter a description here. As in the above example: Active Job List. |
|
Columns |
From the dropdown, you can select which columns you wish to appear:
 |

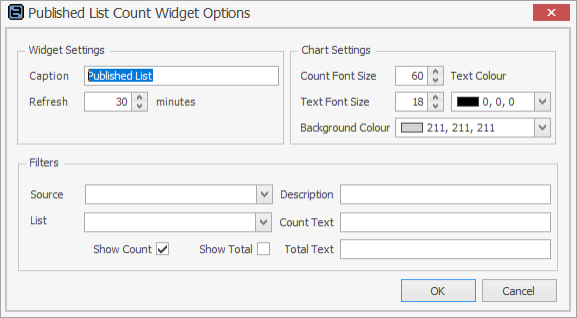

Published List Count
This widget will show the current number of objects within the chosen list. By selecting the Configure icon further selections can be made.
Area |
Option |
Description |
|---|---|---|
Widget Settings |
Caption |
This is the caption that will be displayed at the top of the widget. This is a free type field. |
Refresh |
The widget's refresh interval in minutes. It is suggested not to set this too low (eg. 15 minutes or higher). |
|
Chart Settings |
Count Font Size |
The font size of the actual count. In the image at the top of screen, it is the number 26. |
Text Font Size |
The font size for the text appearing beneath the count number. |
|
Background Colour |
The colour of the field background. |
|
Filters |
Source |
Choose from job, quote, project or email list. |
List |
Select the published list to view. |
|
Description |
You can enter a description here. As in the above example: Active Job List. |
|
Count Text |
Enter the wording you wish to appear beneath the number. |
|

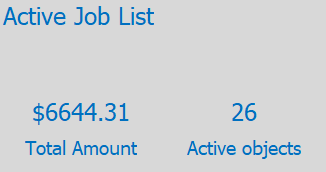

Show Count/Total |
This will show both the count and the total amount.
 |
|
Total Text |
Enter the wording you wish to appear beneath the total amount,. |
Further information
