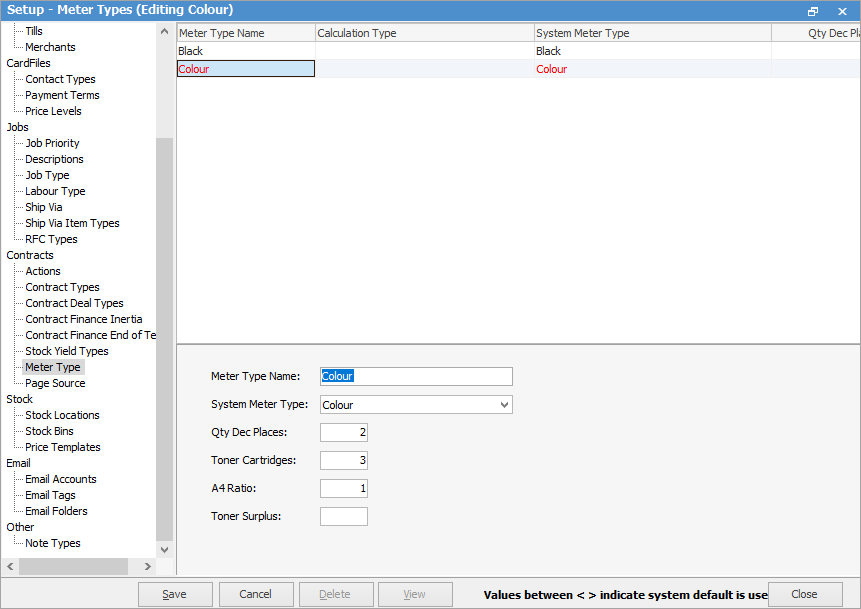

This area is where all meter types are set up, ie. black, colour, etc.
Field |
Explanation |
Meter Type Name |
Enter the name for the meter type, ie. black for a black meter, colour for a colour meter, etc. |
Calculation Type |
Only shows if Total Calculated is selected in the System Meter Type field. Calculations can be based on either the meter type or the stock code.
 |
System Meter Type |
Choose the appropriate system meter type from the dropdown list, ie. Black for Black, etc.
 |
Toner Cartridges |
It is not necessary to enter anything here but number of cartridges can be entered if desired, ie. 1 for black, 3 for colour. |
A4 Ratio |
This sets the ratio of the page based on the meter. For instance, it would normally be 1 for black and 2 for black A3 (because it is double the size), or 3 for colour, etc. |
Toner Surplus |
It is not necessary to enter anything here. |
Qty Dec Places |
Up to 4 decimal places can be used in the quantity fields for meters. |
