Jim2® Business Engine Help File

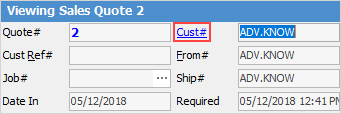

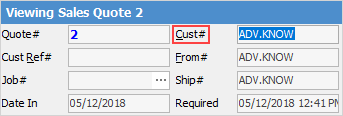

Throughout Jim2 many of the words beside fields shown on forms are actually hidden hyperlinks, which can take you to another form. On a quote form, for example, if you move the cursor over the word Cust# beside its field it will change to a blue underlined hyperlink.



hyperlink sample

Hover over the field



highlight hyperlink

Wording changes to underlined blue

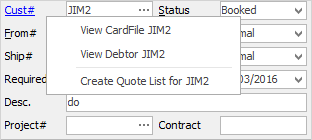

If you left mouse click this link you can select View CardFile, View Debtor, Create (object) List, etc. See below for information on what you will see when you hover over Cust# in different objects.



hyperlink hover



To go back to the original form (which is underneath) you should simply close the current form.



This is the manner in which these hyperlinks work for most forms within Jim2. The important thing to realise is that, unlike most web hyperlinks, the hyperlinks on Jim2 forms appear to be normal text until the cursor hovers over it, as seen above.



It's only when you move the cursor over the field that the hyperlink will actually appear.



The hyperlink on a card file is:

Card Code

Allows you to go to either the Debtor or Creditor record or to view a list of the customer's projects.



The hyperlinks on a quote are:

Cust#

Will take you to the customer's card file.

From#

Will take you to the card file of the entry here.

Ship#

Will take you to the card file of the entry here.

Item#

Will take you to the Item entered here.

Project#

Will take you to the project entered here.

Name

Will take you to the card file of the user's name entered here.



The hyperlinks on a purchase/expense are:

Vend#

Will take you to the vendor's card file.

From#

Will take you to the card file of the entry here.

Ship#

Will take you to the card file of the entry here.

Name

Will take you to the card file of the user's name entered here.



The hyperlinks on a job are:

Cust#

Will take you to the customer's card file.

From#

Will take you to the card file of the entry here.

Ship#

Will take you to the card file of the entry here.

Item#

Will take you to the Item entered here.

Name

Will take you to the card file of the user's name entered here.



You will find hyperlinks in other objects, ie. lists, accounts, etc.
