Vendor Stock Feeds

Scroll Prev Top Next More

Please email support@happen.biz to find out which vendors are supported, as these can change from time to time.



Formats supported are vendor specific, XML and CSV.



First, create an email rule for the stock feed. On the ribbon, go to Email > Email Rules.



Email rules need to be created for each vendor stock feed.



email rules



Select New, then Via Specific Account and enter the email account as set up via Jim2 Config Manager.



email feed setup



Then select Sender Contains, and enter the Text as set up via Config Manager.



sender contains1



Select Next, then double click Process Stock Feed and enter the name as it appears in the StockFeed module in Jim2 Configuration manager.



process stockfeed



Select Next and name the email rule, tick Stop other rules if this rule is run, then select Finish.



dynamic stockfeed



Links are created during vendor feed processing based on the following from the feed:

manufacturer code and manufacturer brand Jim2 stock code and brand;

GTI (global trade item number) number GTI number in Jim2;

vendor stock code and vendor vendor stock code and vendor on vendor stock code of Jim2 stock (Vendors tab in the stock footer).



On the ribbon, go to eBusiness > Vendor Stock Feeds.



vendor stock feeds tab



Info

Vendor Stock Feeds also support multiple warehouses.



The product tree

The Product Tree appears on the left-hand side of the screen. This tree is based on the stock grouping supplied in the feed from the vendor. In the case of My Stock, the grouping is based on the stock groups within the company's own stock. Selecting a stock group within the tree displays stock within that group in the stock grid to the right. Choose to Show all stock in group by ticking the box at the bottom of the Product Tree. When ticked, all stock within the selected group and any stock in groups below this group will be displayed.



Group by product group or by brand

Above the Product Tree are two radio buttons: Group by Product Group (the default) and Group by Brand. These allow for choosing how to display the Product Tree, either by a specific brand and its particular product groups, or by a general product group. Either way, the brand will be displayed in the stock grid.



Search vendor stock feeds

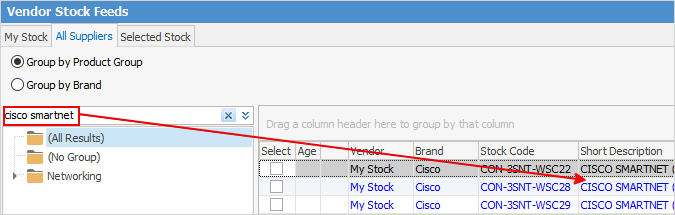

Directly above the Product Tree is the Search Stock field. To search vendor stock, enter text into the Search Stock field and select the Search icon Search Icon, or press Enter. The stock grid will display the results of the search. By default, all search results will be displayed – drill down by clicking within the stock grouping displayed within the Product Tree.



clear icon1



search vendor



To clear the search, select the Clear icon or enter new search text and select the Search icon.



clear icon2



Across the top of the form there are several tabs: My Stock, All Suppliers, Selected Stock and a tab for each vendor a stock feed is received from.

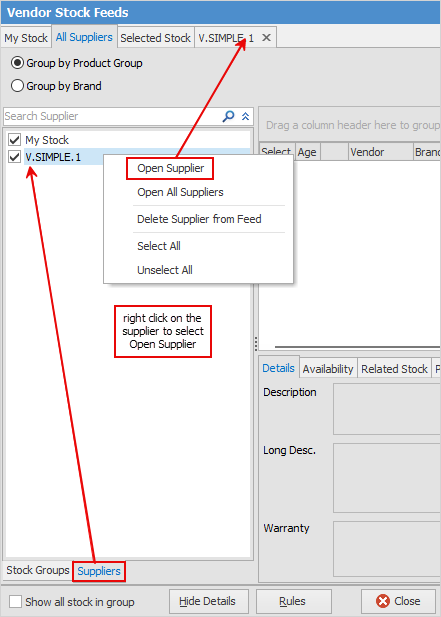

To show the Vendor tab at the top, go to the Suppliers tab at the bottom, select the supplier, right click and choose Open Supplier.



Show supplier tab



There are several other selections available in the pop-up menu, including tick/untick choices, as well as the ability to delete a supplier from the feeds.



From this screen, search for stock, pricing and availability for both the company's stock and stock provided in feeds from one or more of the vendors (via the highlighted tabs below).



vendor stock feeds



Tip

For optimal viewing of vendor stock feeds, a screen width of 1280 pixels is recommended as the minimum screen resolution.



Sorting, searching and grouping is available as per other lists in Jim2. Select the column header in the grid to sort, then drag it to the Group By area to group.



vendor feeds drag



A useful feature here is the ability to see the company's own internal stock (existing stock in Jim2 – lines coloured in blue text in the grid), stock from a specific vendor, or stock from multiple vendors in a consistent manner.

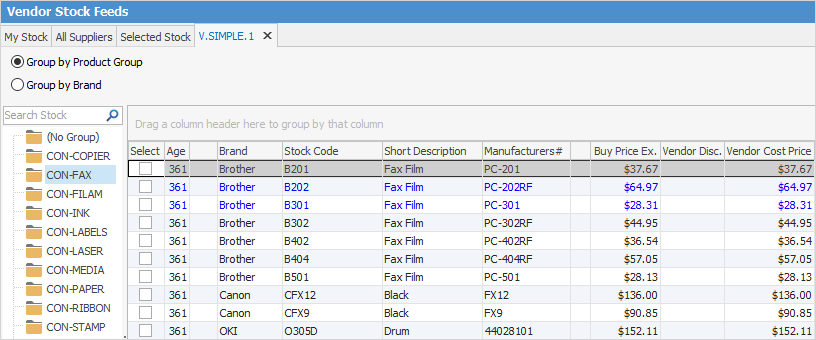

ebusiness stock

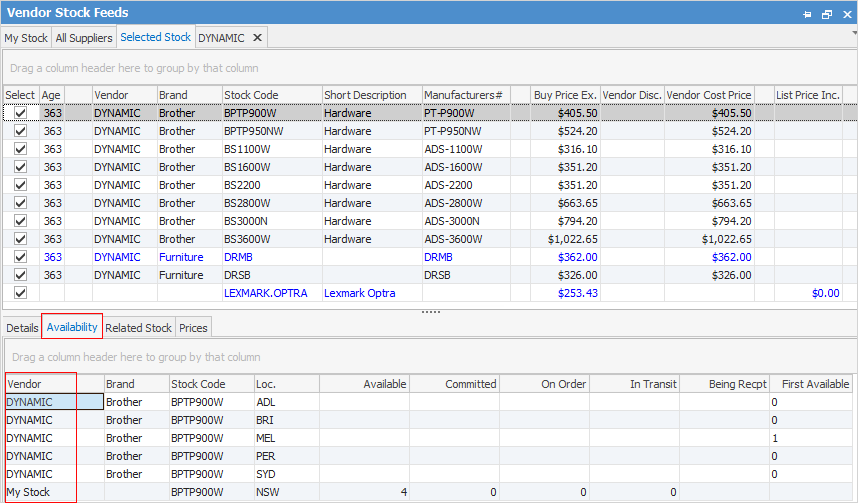

This allows searching both the company's own stock and the suppliers' stock at the same time. Availability across multiple vendors can also be seen, for example. company inventory displays a quantity of five in stock on hand (on the Availability tab), Vendor A has 100 and Vendor B has 50, and at what price.



availability1



Info

The vendor price of Jim2 internal stock (lines displayed in blue text) will be updated each time a vendor stock feed comes in.



Jim2 can handle feeds from hundreds of vendors, and it is easy to link unknown vendors to cardfiles.

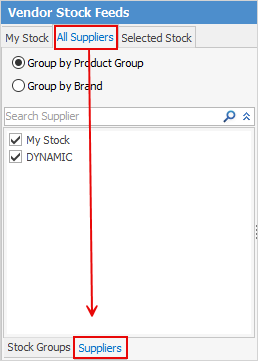

The All Suppliers tab includes a Suppliers tab. Going to the tab displays My Stock and a list of vendors that provide feeds. Choose which suppliers to include by ticking/unticking the box to the left of each supplier.



suppliers tab



Link an unknown vendor to a cardfile

Links are created during vendor feed processing based on the following from the feed:

manufacturer code and manufacturer brand Jim2 stock code and brand;

GTINumber (global trade item number) GTI Number in Jim2;

Stock code and vendor vendor stock code and vendor stock code tab of Jim2 stock (Vendors tab in the stock footer). .



When importing a feed, it is possible that a supplier code in the feed doesn’t match an existing vendor cardfile, especially one that contains multiple suppliers. For example, the feed contains Hewlett Packard, whereas the vendor is called HP in the Jim2 database. In this case, the feed will still be processed, and the suppliers that were unable to be linked will be displayed as <UNKNOWN> XXXX, where XXXX is the unmatched supplier name (ie. HP). To link the unknown supplier, from the Suppliers tab located in All Suppliers, right click on the supplier, and choose Link to Jim2 CardFile.



link supplier



It is also advisable to add the brand when adding stock to Jim2 manually to ensure it is picked up correctly.



Stock Grid

The stock grid displays the following information:



Column

Purpose

Select

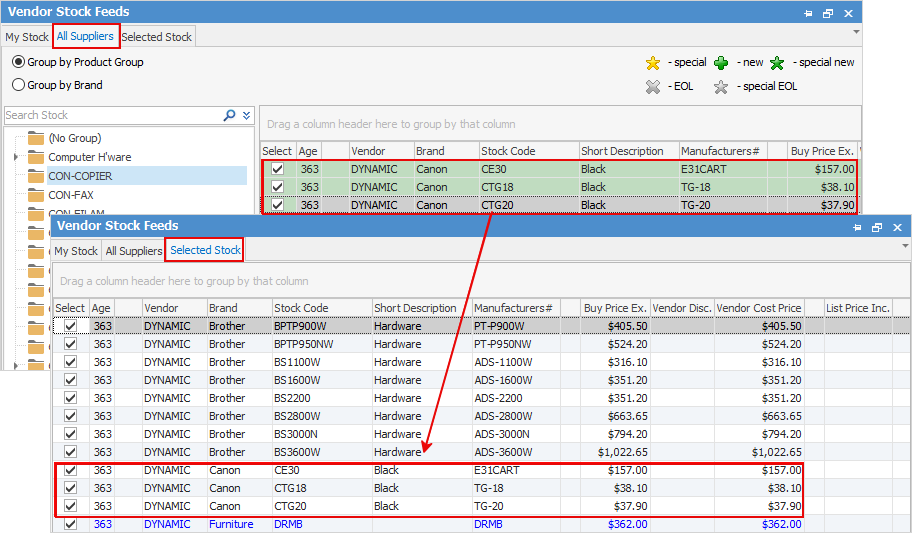

Allows selecting stock of interest. Once ticked, the stock line background will change to green and the selected stock will appear in the Selected Stock tab (in the header). Select stock from several vendors at the same time, with all selections shown in the Selected Stock tab.



selected stock1

Age

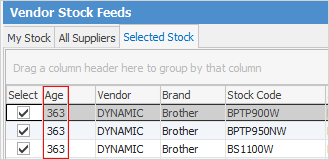

The Age column shows how many days since that particular line of stock has been updated by a vendor stock feed. For example, 1 indicates that this stock information is one day old, or was updated yesterday.



age

Vendor

Vendor displays the card code of the vendor this information is from (All Suppliers and Selected Stock tabs only).

Brand

The brand or manufacturer of the product.

Stock Code

The stock code that the vendor uses to identify this product.

Short Description

The vendor's stock description.

Manufacturers#

The manufacturer's stock code for this product.

Buy Price Ex.

The vendor buy price excluding tax.

Vendor Disc.

The vendor discount.

Vendor Cost Price

The vendor's cost price

List Price Inc.

The vendor list price including tax.

GP%

The gross profit percentage margin (Buy ex. vs List ex.).

Group Code

This is only applicable when a stock feed is for a buying group, in which case this is the stock code used within that buying group.

Qty Avail.

Displays how many units (or pieces) the vendor has in stock, per warehouse.



Info

There are two columns with coloured up/down arrows. These indicate price movement up or down for that stock.



price movements



The legend at the top right explains the icons shown within the grid:



vendor legend



vendor icons

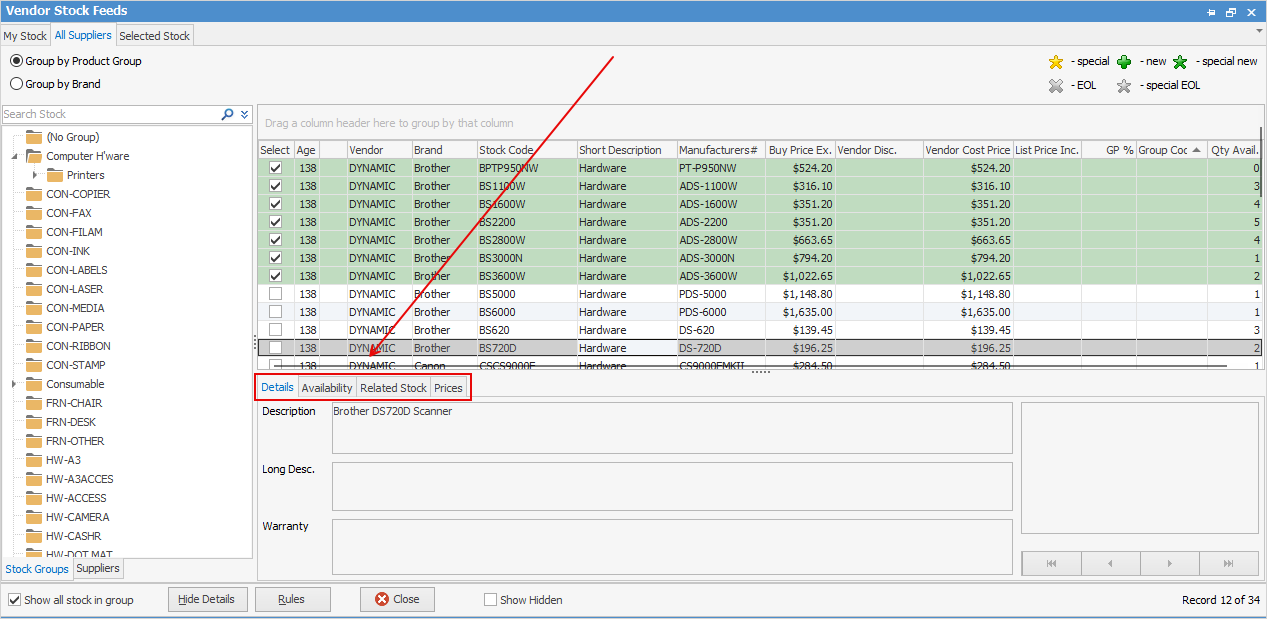

Stock Details Tab

vendor stock feed details



Directly beneath the stock grid are the details for the currently active stock:



Tab

Description

sockfeed description

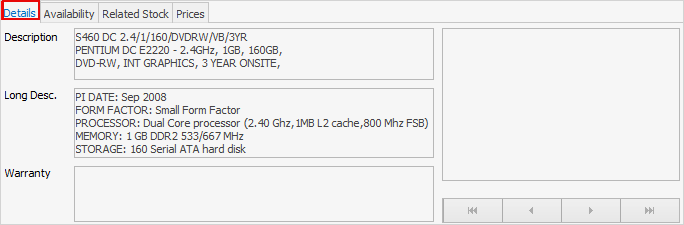

Displays description, long description, warranty details and a picture of the stock (if supplied by the vendor feed).

stockfeed availability

Displays the stock availability for all vendors and warehouses, as well as the company stock (the stock in the company's warehouse or storage area).

stockfeed related



Displays any related stock (if supplied by the vendor feed), ie. a laptop would display related stock of power cord, battery, etc.

vendor prices

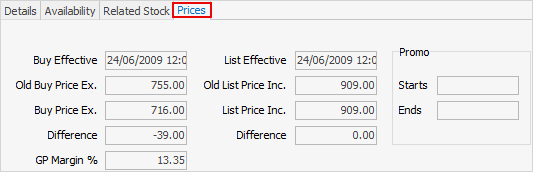

Displays current and previous buy and list prices (ex. or inc., as set via Options) and effective date. Effective date is the date that this current buy/list price came into effect. This tab also displays GP% and promotional start/end dates



If user security allows it, right click within the list grid, choose Export Data and save the list information as an XLSX file.



stock feed data



There are a number of other useful right click options, all self explanatory.
