For Jim2 on premises, please see here for Tyro setup.
To implement Tyro in Jim2, the following is required:
▪Jim2 Retail option.
▪An updated Jim2 key with Tyro enabled.
▪A Tyro merchant account.

|
Contact sales@happen.biz for further information on obtaining the updated Jim2 key and a Tyro merchant account.
|
|

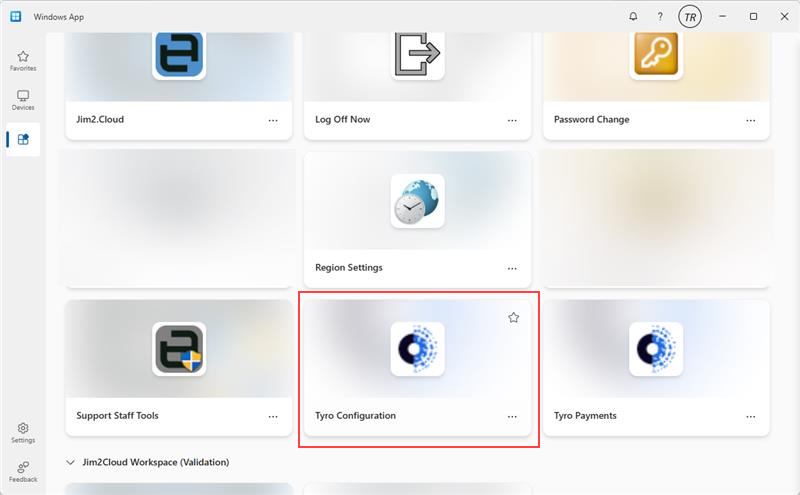

The Tyro configuration is available via the additional published application in the Windows App.

|
Note: The Tyro icons will only appear for those users who have been set up to use Tyro. This needs to be done by Happen Business.
|
|
▪Go to the Windows App and select the Tyro app.
▪Go to Pairing, and make sure TID, MID and name are correct, then select Pair. It will start to count.
▪Go to the POS terminal and click on Pair Tyro button from the Menu button at top right.
▪Enter the TID and MID.
▪Click on Pair and enter Start on the pinpad.
▪Once pairing has completed successfully, return to the home screen of the pinpad.
Refer to the Tyro document Tyro Terminal Adapter Installation Guide (https://help.tyro.com/s/article/How-do-I-install-the-Tyro-Terminal-Adapter) for more information on how to set up and pair the Tyro software and terminal.

|
Within the Tyro Configuration app is where to adjust the printer options, including turning off printing receipts if required (ie. if printing receipts from Jim2 instead).
|
|
Enable Tyro within Jim2 (via desktop) as follows:
▪On the ribbon, go to Tools > Options > Retail & EFTPOS.
▪Change the EFTPOS System Type to Tyro.
▪Tap Test to confirm that the Jim2 Client can communicate with the Tyro terminal.

|
The above options are all workstation specific.
|
|

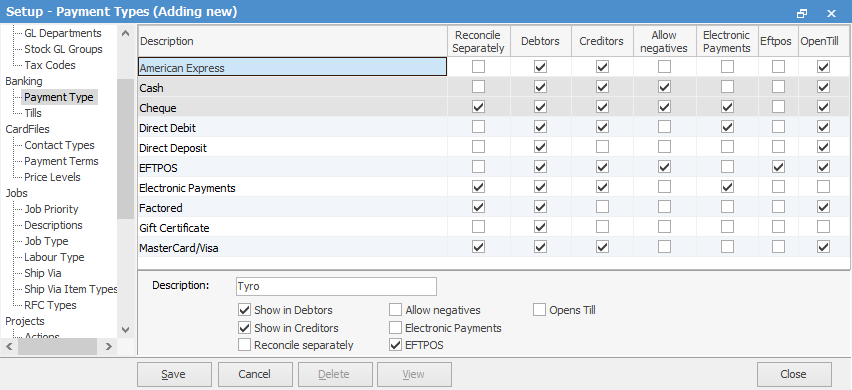

On the Jim2 ribbon, go to Tools > Setups > Banking > Payment Types and add a new payment type for Tyro, then tick EFTPOS.
All payments and refunds using this payment type will now automatically use Tyro EFTPOS as the payment method.
|
