Jim2® Business Engine Help File

Navigation: Managed Print Services Edition

Advanced Meter Examples

Scroll Prev Top Next More

Stock must be set up prior to adding meters, including macro descriptions on the Machines tab.



Example Macros

{{Project.Meter.Counter Name" "}}{{"Last Read - "Project.Meter.Job.Previous Job.Meter Read" "}}{{"Last Estimated Read - "Project.Meter.Job.Previous Job.Estimated Meter Read" "}}{{Project.Meter.Job.Previous Job.Date Due" "}}{{"Current Read - "Project.Meter.Job.Meter Read" "}}{{"Estimated Read - "Project.Meter.Job.Estimated Meter Read" "}}{{"Prints - "Project.Meter.Job.Qty" "}}{{"Estimated Prints - "Project.Meter.Job.Estimated Qty" "}}



Two Meter with 2nd Party Billing on the Black Meter Only

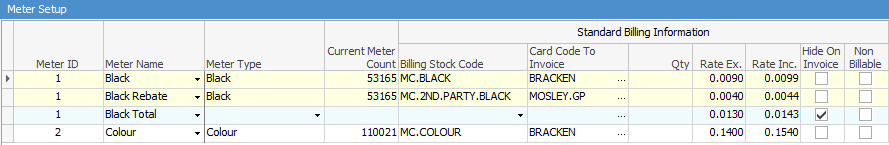

Black charge split between customer and a 2nd party:



two meter black and colour



All billing stock codes must be set up prior to entering meters, along with their macro descriptions under the Machines tab. The Black Total line will auto-populate. This is not a field that needs to be manually entered.



View of Invoice Description to the customer:



Black Charge – 436

Whole of Colour Charge



Total Charge

@ 0.0099

black page count



View of Invoice Description to the 2nd Party:



Black Charge – 436

@ 0.0040

black meter 2nd party



Info

The Billing function automatically creates two billing jobs.



Subtraction Meters

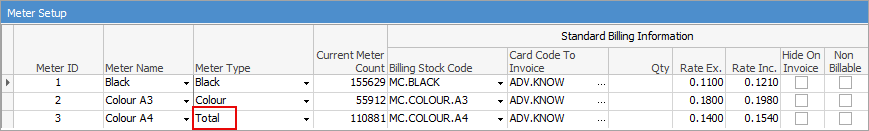

Colour A3 meter subtracting from Colour A4:



subtraction meters



Info

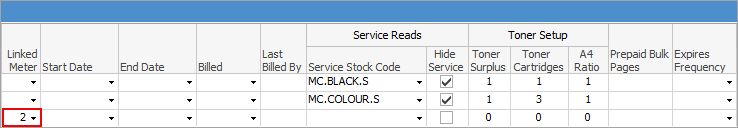

Note: The Total Meter Type requires a stock code with a Meter Type of Total. This also needs to be linked as per image below.



subtraction meters1



View of Invoice Description where copy count exceeds the minimum charge:



Black

Colour A3 56012 – 55912 =

Colour A4 111381 – 110881 - the A3 (100) =



no change

100

400



subtraction meters invoice
